Cattle Panel Trellis: What Is Documented and What Is Your Choice

What a Cattle Panel Is

A cattle panel, also sold as a feedlot panel or livestock panel, is a one-piece welded steel grid made for penning livestock. Gardeners borrow it for three properties, described below.

To give a concrete sense of scale, one commonly sold size is 16 ft long by 50 in high. Tractor Supply lists an OKBRAND feedlot panel at those dimensions, "constructed of 4 gauge wire galvanized before welded," with a graduated mesh of "8 in. vertical x 4 in. horizontal to 8 in. vertical x 6 in. horizontal."

That is one product, not a standard. Panels are sold in other lengths and heights, and the mesh spacing, gauge and finish vary between manufacturers and between panel types. Measure the panel you are actually buying, and measure it before you plan the bed around it.

Three properties matter for garden use: it is rigid enough to hold a shape without a frame, it is galvanized so it survives outdoors, and the mesh is open enough to reach a hand through to harvest.

What Is Documented and What Is a Choice

This is the part most guides skip, and it is worth being direct about. There is solid published guidance on growing vertically. There is very little published by extension services on cattle panel trellises specifically. So this article labels its own claims.

The point of the table is not caution for its own sake. It is that the second half of the list is where you have freedom, and knowing that produces a better structure than copying somebody else's post count.

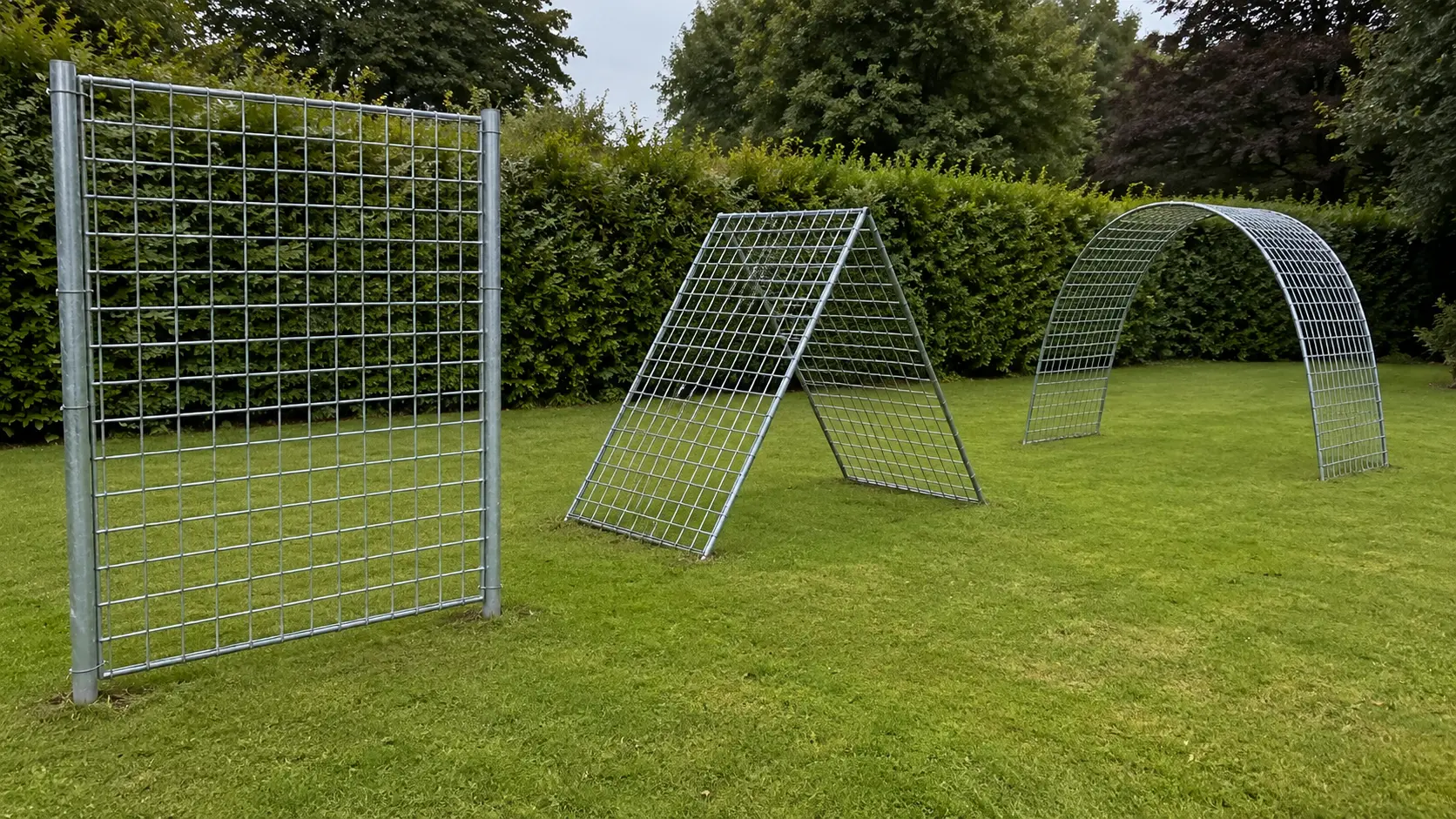

Three Forms: Flat, A-Frame, Arch

Flat vertical. The panel stands upright against posts, like a fence. Simplest to build, easiest to reach, casts a narrow band of shade. Good along a bed edge or a wall.

A-frame. Two panels leaned together at the top, or one panel folded. Free-standing, creates shaded ground underneath. WSU points out that shade is usable rather than wasted: plants "that do well with cooler temperatures, such as brassicas, or that bolt with high temperatures, such as lettuce, are well-suited to being grown on the shady side of trellises."

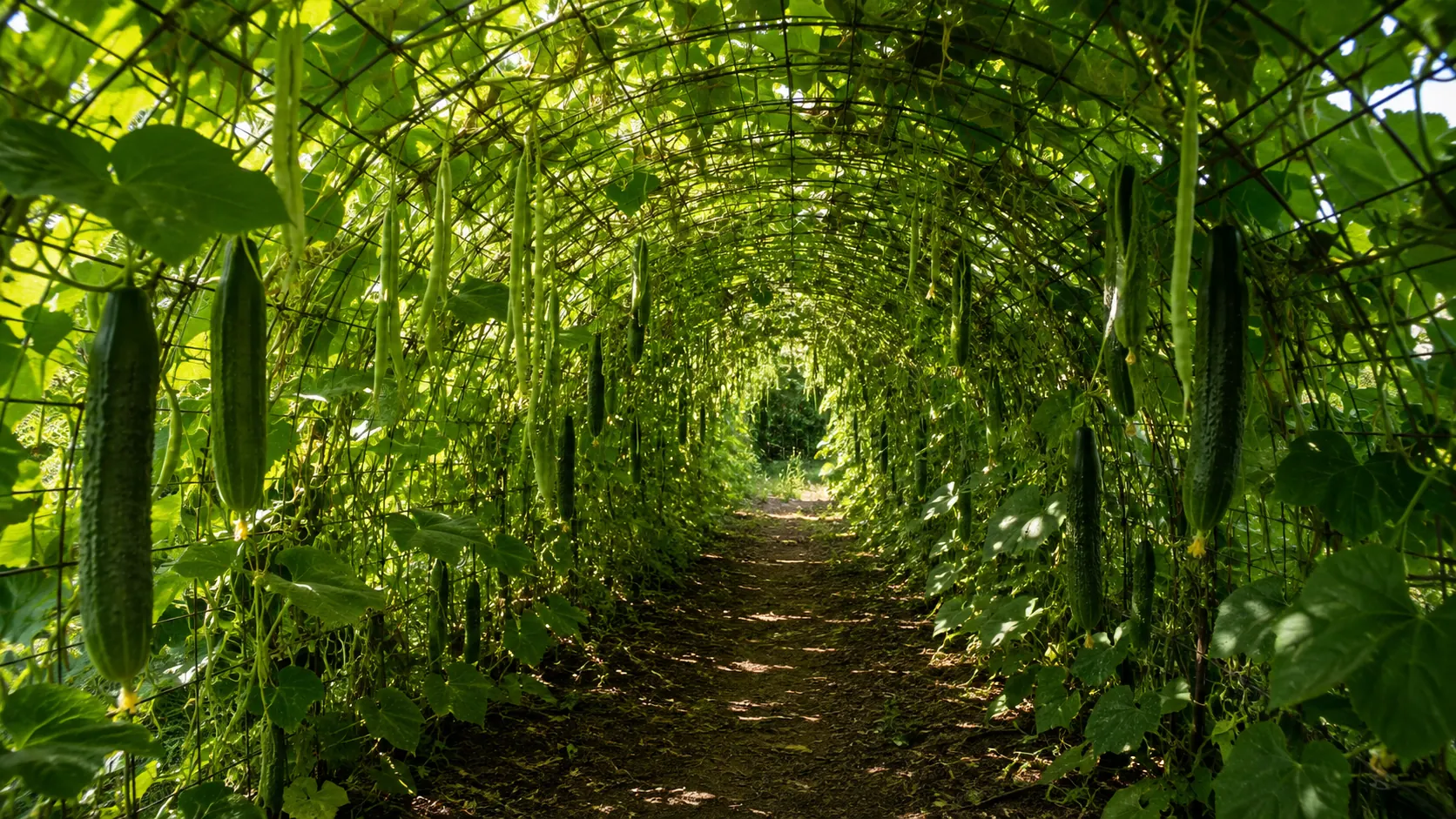

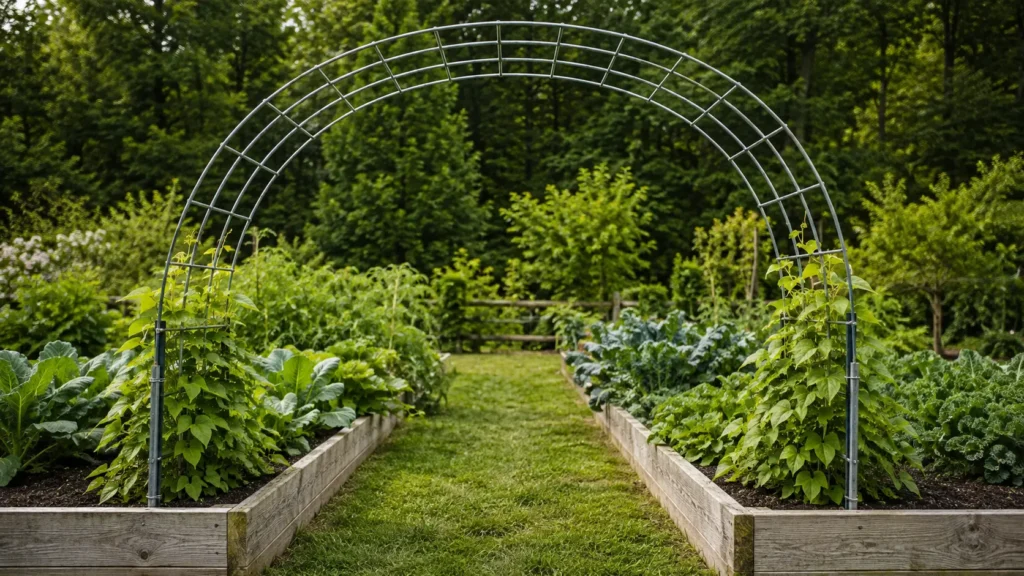

Arch. The panel is bent into a curve spanning two beds, making a tunnel you walk through. Most striking, most demanding to anchor, and the one where fruit hangs down at eye level.

Bending a panel into a curve is a documented technique. UMN Extension's mobile poultry hut instructions describe exactly that operation: "Bend two cattle panels in an arc over the frame and staple them to the frame, about 1 inch or less off the ground, using 2" or 2 ½" staples." That build is a poultry shelter rather than a garden arch, so treat it as evidence that the material bends and holds an arc, not as a garden trellis specification.

How Span Changes Height

Here is the relationship that decides how your arch looks, stated qualitatively because the precise numbers depend on your panel.

The panel has a fixed length. That length does not change when you bend it. So the distance between the two feet, the span, and the height of the arch trade against each other:

• Pull the feet apart and the arch flattens and gets lower, with a wider opening.
• Push the feet together and the arch rises and gets taller, with a narrower opening.

You cannot increase both at once from a single panel. Any guide that gives you one exact span producing one exact height is describing the panel they happened to use.

The practical method costs nothing and beats any published number: before fixing anything, have someone hold the panel bent while you stand under it. Walk through. Push the feet in or out until the headroom and the opening are both what you want, then mark the ground. That mark is your span, derived from your panel and your body rather than from someone else's blog. Do this with the panel securely held and stay clear of it if it is under load; if that is not practical, mark the span from the side instead of standing underneath.

Measure headroom at the edge of the opening as well as at the centre before you fix anything.

Planning Position and Width

Shade is the first consideration, and it is documented. WSU: "Take into consideration the shade that trellised plants will cast on the garden and do not plant heat-loving or late-maturing plants in the shade of the trellis."

In practice that means orienting the structure so its shadow falls where you want it. A trellis running parallel to the sun's daily path keeps its shadow on roughly the same side all day, so one strip of ground stays shaded. A trellis running across that path lets the shadow sweep, so no single strip stays dark for long. Neither is wrong, but the choice decides what you can plant beside it. Watch where the shadow actually falls on your plot across a day rather than working from compass directions, which reverse between hemispheres.

For an arch, the span is set by the two beds it connects, so plan the beds and the arch together. Getting a wheelbarrow through matters more than it sounds like it does.

Utah State notes that raised beds let vertical structures do real work, observing that they "can be incorporated to allow vine-type crops like pole beans and peas to climb, making more efficient use of space." If the panel is going over beds, that is the pairing to aim for.

Building It, Step by Step

These steps are sequence and technique. The specific hardware counts are deliberately left to you, for the reason given in the next section.

1. Measure your actual panel. Length and height, not the number from an article.
2. Mark the footprint. For a flat trellis, mark the post line. For an arch, use the walk-through test above and mark both feet.
3. Set the supports first. Put them in before the panel goes up. Driven steel posts are one common approach; the depth and spacing that actually hold depend on your soil, your site and the load, so follow the post manufacturer's guidance rather than a number from an article.
4. Handle the panel with care. Long panels are awkward to move and can be under spring tension. Follow the manufacturer's handling instructions, use appropriate protective equipment, and get suitable help for the lift and the install.
5. Bend gradually, if arching. Walk the feet inward in stages while a second person steadies the top. Let the curve develop along the whole length instead of forcing a kink.
6. Fasten at multiple points. Attaching the panel to each support in more than one place spreads load rather than concentrating it. UMN's poultry hut build uses staples into a wooden frame; wire and heavy ties are commonly used against steel posts. Which fastener suits your structure is a product and site question, not something these sources settle.
7. Test before planting. Push the structure firmly from several directions. Anything that moves now will move more in wind, and much more when loaded with wet vines.
8. Trim or protect cut ends. Cut wire leaves sharp points at head and shin height.

Anchoring, and Why There Is No Single Answer

Post count is a design choice rather than a universal specification; size the support for the panel, span and site you are actually building.

The load is site-specific. What holds a panel down depends on:

• Soil. A post driven into dense loam holds very differently from one in sand or in thin soil over rock.
• Exposure. An arch is a sail. A sheltered courtyard and an open windy plot are different problems.
• Load. A panel of peas weighs little. The same panel carrying mature squash vines after heavy rain weighs a great deal more.
• Form. A flat panel against posts is loaded differently from an arch under tension.

So this guide does not tell you to use a specific number of posts, because no institutional source establishes one and inventing a figure would be dressing up a guess as a specification.

What to do instead: over-support rather than under-support, spread fasteners along the panel rather than clustering them, push-test the finished structure hard, and re-check after the first storm and again once the vines are heavy. If it moves, add support. That feedback loop is what this guide relies on.

What to Grow On It

WSU names the straightforward climbers directly: "Examples of vegetables that grow well vertically on a trellis or fence are peas, pole beans, and cucumbers."

Heavy fruit comes with a condition attached, and it is the one people discover too late. WSU: "Melons and small-fruiting pumpkins or winter squash can be grown on A-frames or strong trellises to take up less space, but you will need to support the fruit." Slings of fabric or netting tied to the panel are one way to do that.

And use the shade deliberately. WSU again: brassicas and lettuce are "well-suited to being grown on the shady side of trellises." Under an arch is a genuinely good place for greens in hot weather.

Common Mistakes

Copying a span from an article. Different panel, different result. Do the walk-through test.

Anchoring for the empty structure. A bare panel is stable in a way a loaded, wet, wind-caught panel is not. Build for August, not for the day you install it.

Forgetting the shade. Planting sun-lovers on the shaded side is the mistake WSU explicitly warns about.

Underestimating the handling. A long steel panel under spring tension is difficult to control. Treat the lift and the bend as tasks needing proper help and protective equipment.

Assuming all panels are the same. Heights, lengths, gauges and mesh spacing vary by product and manufacturer.

Leaving cut ends exposed. Sharp wire at eye level in a tunnel you walk through is a real hazard.

FAQ

What size is a cattle panel?
Sizes vary by product. One commonly sold example is 16 ft by 50 in; Tractor Supply lists an OKBRAND panel at those dimensions in 4 gauge wire. Other lengths and heights exist, so measure the panel you buy.

How tall will my arch be?
It depends on your panel length and the span between the feet, which trade against each other. Bring the feet closer for a taller, narrower arch; spread them for a lower, wider one. Test it standing up before you fix anything.

How many posts do I need?
There is no single documented answer, because it depends on soil, wind exposure, crop load and form. Support generously, spread the fasteners, push-test the finished structure and add support if anything shifts.

What can I grow on a cattle panel trellis?
WSU names peas, pole beans and cucumbers as good vertical crops. Melons and small winter squash work too, but the fruit needs support.

Can you bend a cattle panel by hand?
The material takes a curve, which is why arch builds work. UMN Extension's poultry hut instructions describe bending panels into an arc and stapling them. Do it with a second person and let the curve form gradually.

Will it rust?
Panels like the one listed are galvanized, which is why they suit outdoor use. If you cut the panel, protect the exposed cut ends.

References

• Washington State University Extension, Home Vegetable Gardening in Washington. Vertical growing, suitable crops, fruit support and trellis shade.
• University of Minnesota Extension, Farmbytes: DIY mobile poultry hut. Bending cattle panels into an arc and fastening them, in a poultry shelter context.
• Utah State University Extension, Raised Bed Gardening. Vertical structures for vining crops in raised beds.
• Tractor Supply, OKBRAND feedlot panel listing. Dimensions, wire gauge and mesh of one commercial panel.
